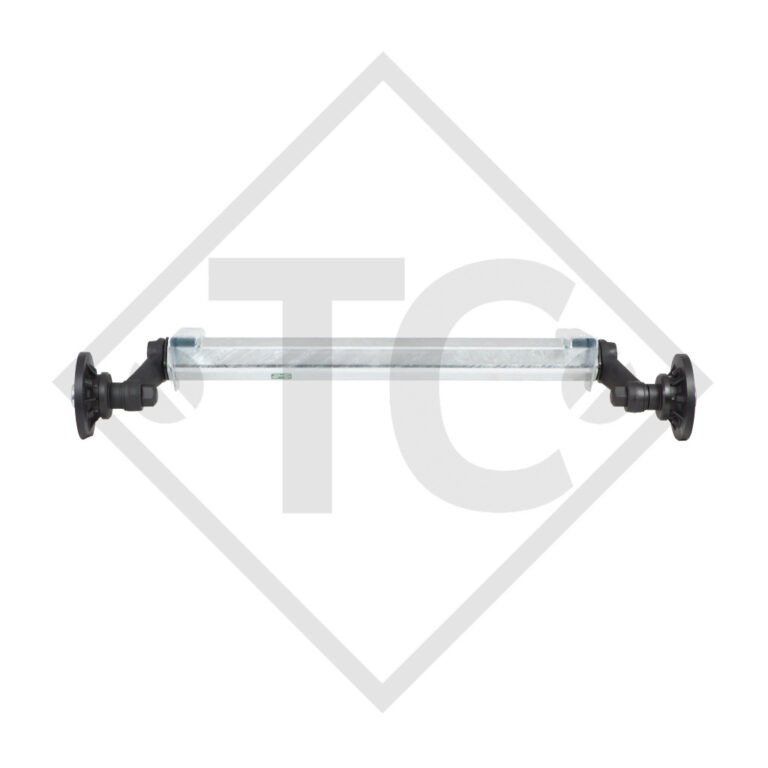

Unbraked axle 1800kg PLUS axle type 1800-9

587,90 € – 645,20 €

incl. VAT plus shipping costs

BC in mm dimension A:

OHF in mm dimension C:

Clear

SKU: 20057001 Categories: CHASSIS PARTS, UNBRAKED AXLES, UNBRAKED AXLES & ACCESSORIES, CHASSIS PARTS AL-KO, AXLES Tags: alko achse 1800-9, alko assale 1800-9, alko axle 1800-9, alko eje 1800-9, alko essieu 1800-9

Description

Unbraked axle 1800kg PLUS axle type 1800-9

Original operating instructions
Replacement part identification number (ETI) 811628

TECHNOLOGY
Model: PLUS
Axle type: 1800-9 PLUS
Axle load: 1800kg
Wheel connection: 112×5
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 66,5mm

SCOPE OF DELIVERY
Axle
Wheel bolts loose
Operating instructions

SURFACE TREATMENT
Axle profile hot-dip galvanised

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

SIMPLY SEND US A PHOTO OF YOUR AXLE TYPE PLATE, TOGETHER WITH YOUR ADDRESS AND TELEPHONE NUMBER TO info@trailer-center.shop
Please feel free to avail of our service and request a non-binding offer by email today!

Additional information

Weight	200 kg
Brand	AL-KO
Delivery time	approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy.
BC in mm dimension A:	1000, 1040, 1070, 1100, 1150, 1200, 1220, 1250, 1310, 1350, 1400, 1450, 1500, 1530, 1550, 1580, 1600, 1625, 1670, 1700, 1750, 1800, 1850, 900, 950
OHF in mm dimension C:	1400, 1450, 1500, 1540, 1570, 1600, 1650, 1700, 1720, 1750, 1810, 1850, 1900, 1950, 2000, 2030, 2050, 2080, 2100, 2125, 2170, 2200, 2250, 2300, 2350
